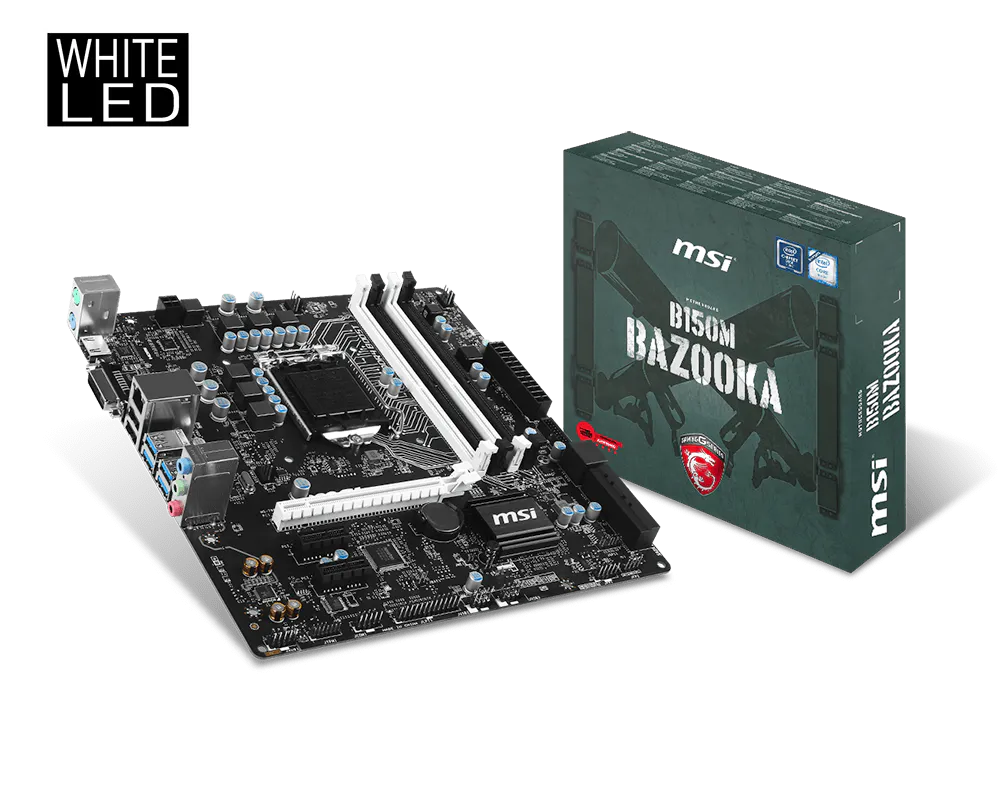

MSI B150M BAZOOKA
CPU & Chipset
• CPU Socket: LGA1151
• Supported Processors: 6th Gen Intel Core i3 / i5 / i7, Intel Pentium, and Celeron processors
• Chipset: Intel B150 Express
Memory (RAM)
• Slots: 4 x DDR4 memory slots (Dual channel architecture)
• Maximum Capacity: Up to 64 GB
• Speeds: Supports DDR4 2133 MHz and Intel XMP (note that higher speeds cap at 2133 MHz due to Intel chipset limits)
Expansion Slots
• PCIe x16 Slots: 1 x PCIe 3.0 x16 slot
• PCIe x1 Slots: 2 x PCIe 3.0 x1 slots
Storage
• SATA 6Gb/s: 6 x SATA 6Gb/s ports
• SATA Express: 1 x SATAe port (PCIe 3.0 x2, backward compatible with SATA)
Video & Graphics (Requires CPU with integrated graphics)
• HDMI: 1 x HDMI port (supports up to 4096x2160 @ 24Hz / 2560x1600 @ 60Hz, HDMI 1.4)
• DVI-D: 1 x DVI-D port (supports up to 1920x1200 @ 60Hz)
USB Ports
• USB 3.1 Gen1: 6 total (4 on the back panel, 2 via internal header)
• USB 2.0: 6 total (2 on the back panel, 4 via internal headers)
Audio & LAN
• Audio Codec: Realtek ALC887 7.1-Channel High Definition Audio
• LAN Controller: 1 x Realtek RTL8111H Gigabit LAN controller
Form Factor & Dimensions
• Type: Micro-ATX (m-ATX)
• Dimensions: 9.3 in. x 9.0 in. (23.5 cm x 22.8 cm)
$ 100.00
$ 100.00
